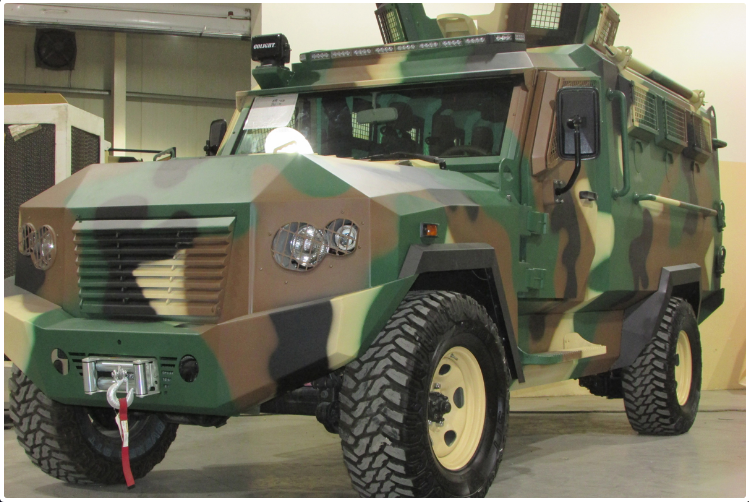

TOYOTA LAND CRUISER 79 4.0L V6 PETROL APC B6 ARMORED

Engine:

  • Petrol 4.0 litre
  • 6 Cylinder, V Type
  • Output Hp/rpm 129/3800
  • Torque Kg-m/rpm 29/2200

Transmission:

  • 5-Speed Manual transmission

Dimensions & Capacities:

  • Length: 4990 mm
  • Width: 1790 mm
  • Height: 2115 mm
  • Fuel Tank Capacity: 90l+90l
  • Seating Capacity: 9 Seats
  • Tyres: 7.50r16-8e 5.50f Steel

Suspension & Brake System:

  • Front Leading Arm; Rear Leaf Spring
  • Ventilated disc brakes

Interior Features & Safety:

  • Speedometer
  • Manual Air Conditioning
  • Power Steering
  • Tilt And Telescopic Steering Column (manual)
  • Glove Box
  • 4 Spoke Urethane Steering Wheel
  • Cup Holders
  • Rear Differential
  • Audio/am/fm/cd
  • 2 Speakers

External

• Steel Wheel Rims with 7.50R16 tires.
• Super Long Wheel Base.
• Rear Door-Mounted Spare Wheel.
• Halogen Driving Lamps.
• Towing Hook – Front – Closed, Rear – Pinter.

Ballistic Specifications

B6 level are armoured using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.

Armouring:

All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armour steel and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.

Opaque Areas:

All opaque areas including the roof are protected against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Transparent Areas

All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Floor:

The floor of the vehicle is designed to defeat the following threat:

  • Two DM 51 (German Norm) detonated simultaneously

Armouring design:

  • The armouring is a complete self-supporting structure grafted onto the base vehicle chassis in place of the original bodywork creating a unitary protection cell for the passengers.
  • The main armour shell provides overlap for all the secondary armour components such as the doors and the windows, roof hatches, gun-ports etc.
  • Double floor protection for improved blast resistance
  • Heavy-duty hinges for all the opening elements (doors, hatches).
  • Hinges with in-built door-stop.
  • Fuel-tank(s) protected with steel armour-plates.
  • Full engine compartment protection, including bonnet.
  • All welded joints produced using a special welding technique limiting the heat-transfer to the armour steel around the weld, and covered with non-heat-affected overlaps.

Test Reports/ Product Liability

All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armouring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.

Additional equipment included:

  • Side and rear-facing gun-ports
  • Front Roof-hatch
  • Fuel-tank protection
  • Upgraded suspension to cope with the additional weight due to armouring
  • Run-flat systems on all 5 wheels
  • Rear crew compartment manual air-cooler
  • Roof-mounted turret
  • Public addressing System
  • Siren and Police lights

Further optional equipment:

  • Additional roof-hatches
  • Blast-mitigating seats
  • Alternative seating layouts
  • 16×8 split-rim wheels with CTIS
  • Turbocharger with intercooler
  • Tool-kit, hydraulic heavy-duty jack, fire extinguisher
  • First-aid kit and stretcher
  • 2-way intercom
  • Front and rear strobe-lights
  • Police siren/Public address system
  • Bull-bar
  • Communications equipment (VHF, UHF, satellite…)
  • Electronic Counter Measure Equipment (RF Jammer)
  • Video recording/surveillance equipment
  • Higher ballistic protection level
  • Additional blast protection
  • Other – Please let us know your specific requirements
