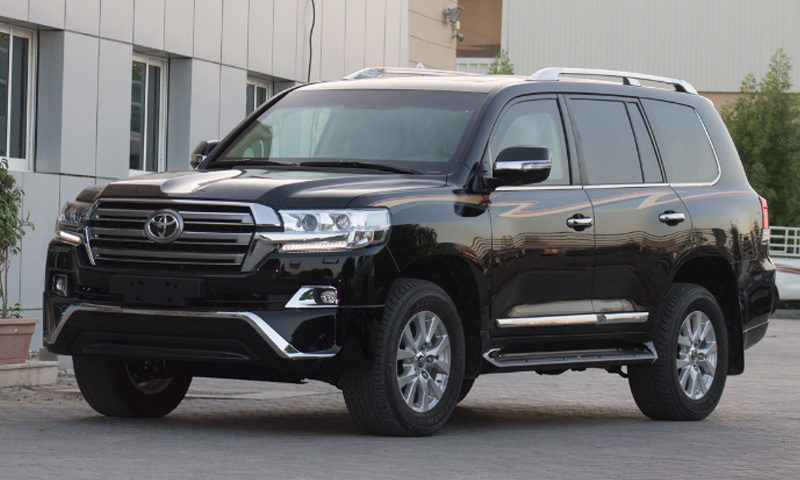

TOYOTA LAND CRUISER GXR, MY17 B6 ARMORED

Engine:

  • 4.5 Litre, V8, 32-valve, Dohc, Common-rail Type (1vd-ftv)
  • Output 232hp/3200 Rpm
  • Torque 62.7 Kg-m/1800-2200 Rpm

Transmission:

  • 6-Speed Manual transmission

Dimensions, Capacities & Suspension

  • Dimensions (mm): L 5,095 X W 1,980 X L 1,890
  • Fuel Tank Capacity: 138l
  • Seating Capacity: 8
  • Terrain: 4×4 Full-time
  • Gross Weight (kg): 3,350
  • Number Of Doors: 5
  • Tyres: 285/60 R18

Interior Features & Safety:

  • Dual Front Zone Auto Air Conditioning
  • Center Console Cooler Box
  • Central Locking
  • Auto Dimming Rear View Mirror
  • Fabric Seats
  • Push Start Button
  • Power Steering
  • Rear Manual Air Conditioning
  • Power Windows
  • Floor Mats
  • Wood Grain Interior Package
  • Leather Woodtrimmed Steering Wheel
  • Audio Am/fm/cd
  • Aux/usb/bluetooth
  • Number Of Speakers 6
  • Steering Wheel Control For Audio/telephone
  • Antilock Brake System (abs)
  • Crawl Control
  • Brake Assist (ba)
  • Turn Assist Function
  • Electronic Brakeforce Distribution (ebd)
  • Rear Fog Lamp
  • Hill Start Assist Control (hac)
  • Tire Pressure Monitoring System
  • Vehicle Stability Control
  • Dual Front Airbags
  • Cruise Control
  • Sides/curtain Airbags
  • Front Rear Parking Sensors
  • Navigation

Exterior Features:

  • 18 Alloy Wheels
  • Retractable Door Mirrors
  • Floor Mounted Spare Wheel
  • Body Colored Door Mirrors
  • Towing Hitch With Pintle Hook
  • Smart Keyless Entry
  • Wireless Door Lock
  • Manual Headlight Leveling
  • Side Steps With Cover
  • Led Headlights With Drl’s
  • Chrome Back Door Trim
  • Chrome Back Door License Garnish
  • Headlight Cleaners
  • Front Fog Lamps
  • Front Bumper Spoiler
  • Sunroof
  • Rear Bumper Spoiler
  • Chrome Side Protection Moulding
  • Roof Spoiler
  • Chrome Door Handles
  • Door Mirrors Powered

Ballistic Specifications: B6 level are armoured using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.

Armouring: All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armour steel
and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.

Opaque Areas: All opaque areas including the roof are protected against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Transparent Areas: All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Floor:

The floor of the vehicle is designed to defeat the following hand grenades

  • Two DM 51 (German Norm) detonated simultaneously

In addition, the floor also offers protection against anti-personnel mines.

Armouring design:

  • The armouring is integrated inside the vehicle’s cab and forms a complete self-supporting structure so as to avoid excessive stress on the vehicle’s original structure.
  • The interior armour-frame provides overlap for the large-surface armour components such as the door armour-plates and the windows.
  • Hinge mounting points are reinforced both in the pillars and in the doors in a way that the armouring of the door is supported by the armouring of the pillar.
  • Heavy-duty hinges with in-built door-stop.
  • Fuel-tank(s) protected with steel armour-plates.
  • The battery and control module of the engine are protected 6.5mm high-quality armour steel.

Test Reports/ Product Liability:

All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armouring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.

Additional equipment included:

  • ECM and battery protection
  • Fuel-tank protection
  • Upgraded suspension to cope with the additional weight due to armouring
  • Run-flat systems on all 5 wheels

Further optional equipment: Further optional equipment available at extra cost, such as

  • Operable front door windows
  • Ballistic radiator protection
  • Full engine sides protection
  • Brake upgrade – stage 2 (slotted discs and braided hoses + HD callipers and pads)
  • Brake upgrade – stage 3 (big discs, 6-piston callipers front, 4-piston callipers rear and pads)
  • Suspension upgrade – stage 2 (HD antiroll bars)
  • Suspension upgrade – stage 3 (high performance springs and dampers for high-speed driving)
  • Heavy Duty 18” alloy rims with run-flats
  • Gun-ports
  • 2-way intercom
  • Police siren and Public-Address system
  • Front and rear strobe-lights integrated in OEM light lenses
  • Bull-bar
  • Communications equipment (VHF, UHF, satellite…)
  • Electronic Counter Measure Equipment (RF Jammer)
  • Video recording/surveillance equipment
  • Higher ballistic protection level
  • Additional blast protection
